Technical Specifications

Please click on one the main product elements below to open up the part numbered diagram and then all of the parts listed in detail below the diagram

steel-sliding-systems-1
1   –   051041   –   Bottom Roller
2   –   052551xx   –   Twin Wheel Top Guide
3   –   060015xx   –   Steel Double Bottom Track
4   –   060020xx   –   Steel Double Top Track
5   –   0700yyxx   –   Steel Rail
6   –   0800yyxx   –   Montreal Steel Stile
7   –   0850yyxx   –   Halifax Steel Stile
8   –   0800yyxx   –   Concord Steel Stile
9   –   0850yyxx   –   Laval Steel Stile
10   –   099250   –   Top Positioner
11   –   099259PLS   –   Positioner, grey plastic
12   –   811000xx   –   Dust Stop Brush Strip
13   –   82100003   –   Bottom Roller Guard left/right
14   –   093000xx   –   Steel Connector Rail
15   –   099260   –   10/4/25 Spacer
16   –   099263   –   10/4/10 Spacer
17   –   092000xx   –   Stick-on Decorative Strip
18   –   880000xx   –   Safety Backing
19   –   099249   –   Buffer Strip Clip
20   –   099249A   –   Buffer Strip Clip
21   –   810000xx   –   Buffer Strip
22   –   099245   –   Steel System Soft Closer Accessories
23   –   09923X   –   Universal Soft Closer
steel-sliding-systems-item-1

1. Bottom Roller for Steel System

Body made from galvanized structural steel, designed for snap and screw fixing. The moving part is adjustable within the 0-32 mm range by means of an adjusting bolt and is provided with an anti-jump feature. The roller has a wheel of a high-strength plastic with an embedded sealed ball bearing. Resistance: up to 60 kg/2 rollers, up to 50,000 open/close cycles.






steel-sliding-systems-item-22. Twin Wheel Top Guide

Body made from galvanized structural steel, designed for snap and screw fixing. The guide features wheels of high-strength plastic and vibration damping rubber. The moving part allows the wheels to be adjusted within the 0, 16, 32 mm range. The wheels, fixed to an elastic moving arm, precisely follow the track.






Indeco_Katalog_techniczny_ENG_notools-133. Steel Double Bottom Track, 5 m.

Track made from galvanized zinc-coated steel sheet, fi-nished with polyester paint or simulated wood film. Material thickness: 0.5 mm. Track length: 5000 mm.






060020xx4. Steel Double Top Track, 5 m.

Track made from galvanized zinc-coated steel sheet, fi-nished with polyester paint or simulated wood film.




0700yyxx5. Steel Rail, 2.4 m.

A rail for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film. Material thickness: 0.5 mm.




0800yyxx6. Montreal Steel Stile, 2.75 m.

A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




0850yyxx7. Halifax Steel Stile, 2,75 m.

A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




0800yyxx-28. Concord Steel Stile, 2.75 m.

A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




0850yyxx-29. Laval Steel Stile, 2.75 m.

A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




09925010. Top Positioner

A component that holds in position steel system doors.




099259PLS11. Positioner, grey plastic.

Sets the S100 system door leaf in the end position. It is stuck to the top track.




811000xx12. Self-adhesive Dust-stop
Brush 6.7 x 12.

A brush designed to seal the space between door leaves and to stop dust. Hair length: 12 mm.

811000xx-2Self-adhesive Dust-stop Brush 6.7 x 8.

A brush designed to seal the space between door leaves and to stop dust. Hair length: 8 mm.




8210000313. Bottom Roller Guard left/right

A set of bottom roller guards (right and left) for steel systems.




093000xx14. Steel Connector Rail, 2.75 m.

A universal profile designed for horizontal and vertical joints between different panel types with a thickness of 4 and 10 mm. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




09926x15. and 16. Spacer for steel system with combination panels.

A universal profile designed for horizontal and vertical joints between different panel types with a thickness of 4 and 10 mm. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




092000xx17. Stick-on Decorative Strip.
Length: 2.4 m.

A decorative steel strip to be stuck on the steel system panel. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




880000xx18. Self-adhesive Safety Backing.

Self-adhesive Safety Backing, 100 mm x 250 m. Transparent film. Packaging: 100 m2/roll, 10 cm wide. Weight: ~2.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 200 mm x 250 m. Black film. Packaging: 50 m2/roll, 20 cm wide. Weight: ~5.00 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 300 mm x 250 m. Transparent film. Packaging: 75 m2/roll, 30 cm wide. Weight: ~7.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 400 mm x 250 m. Transparent film. Packaging: 100 m2/roll, 40 cm wide. Weight: ~10.50 kg/roll. Availability: continuous.




09924919. Buffer Strip Clip.

A clip preventing the buffer strip from coming unstuck.




099249A20. Buffer Strip Clip.

A clip preventing the buffer strip from coming unstuck.




810000xx21. Self-adhesive Buffer Strip, 4.8×5 or 4.8 x 4.

A strip designed to dampen door impact against the wall and eliminate minor wall irregularities.




09924522. Steel System Soft Closer Accessories.

These items are used to fix the
universal soft closer to
a steel system door leaf.
The steel system door closer
accessories include:
– Trigger
– Soft closer adapter, right
– Soft closer adapter, left
– Adjusting screw 2.9 x 19mm (1 pce)
– Trigger mounting screws 3.5 x 16mm (2 pcs)
– Soft closer adapter mounting screws 2.9 x 13mm (2 pcs) – Soft closer mounting screws M3 x 16 mm (4 pcs)
– Soft closer adapter mounting rivets (4 pcs) Application: S100.




09923x23. Universal Soft Closer.

It ensures that the door leaf closes softly to its end position. The soft closer features an air damper, which gu-arantees durability and performance stability throughout its useful life.
The design of the soft closer body allows it to be used as a left-hand or right-hand closer. The installation of the soft closer on the steel system-based door leaf is possible with the use of the steel system door closer accessories 099245. The soft closer is available in two versions:
099233 – soft closer for doors of up to 25kg in weight.
099234 – soft closer for doors of 25 to 50kg in weight. Application: S100, A100, A200.
Availability: continuous.


steel-system-pivoted-doors
1 – 0700yyxx – Steel Rail
2 – 0800yyxx – Montreal Steel Stile
3 – 0850yyxx – Halifax Steel Stile
4 – 810000xx – Buffer Strip or Dust Stop Brush Strip
5 – 82100003 – Bottom Roller Guard, left/right
6 – 88000310 – Magnetic Latch and Keeper
7 – 89500060 – S300 Hardware Set
7/1 – Pivot Pin
7/2 – Connector with Pivot Socket
7/3 – Connector
8 – 099260 – 10/4/25 Spacer
9 – 099263 – 10/4/10 Spacer
10 – 099249 – Buffer Strip Clip
11 – 099249A – Buffer Strip Clip
12 – 093000xx – Steel Connector Rail
13 – 092000xx – Stick-on Decorative Strip

0700yyxx1. Steel Rail, 2.4 m.

A rail for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film. Material thickness: 0.5 mm.




0800yyxx2. Montreal Steel Stile, 2.75 m.

A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




0850yyxx3. Halifax Steel Stile, 2,75 m.

A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




810000xx4. Self-adhesive Buffer Strip, 4.8×5 or 4.8 x 4.

A strip designed to dampen door impact against the wall and eliminate minor wall irregularities.




821000035. Bottom Roller Guard left/right

A set of bottom roller guards (right and left) for steel systems.




880003106. Magnetic Latch and Keeper

Automatic magnetic latch for pivoted doors with a self -adhesive keeper
Packaging: 1 pce/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.




895000607. A set of hardware for steel systems with S300 pivoted doors.

Packaging: 1 set.
Weight: ~0.36 kg/set.
Availability: continuous.




09926x8. and 9. Spacer for steel system with combination panels.

A universal profile designed for horizontal and vertical joints between different panel types with a thickness of 4 and 10 mm. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




09924910. Buffer Strip Clip.

A clip preventing the buffer strip from coming unstuck.




099249A11. Buffer Strip Clip.

A clip preventing the buffer strip from coming unstuck.




093000xx12. Steel Connector Rail, 2.75 m.

A universal profile designed for horizontal and vertical joints between different panel types with a thickness of 4 and 10 mm. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.




092000xx13. Stick-on Decorative Strip.
Length: 2.4 m.

A decorative steel strip to be stuck on the steel system panel. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.


aluminium-system
1 – 051711 – Bottom Roller (complete)
2 – 052471xx – Top Guide for Quebec Victoria Calgary Yukon Edmonton Hudson profiles
052611xx – Top Guide for Niagara Windsor profiles
3 – 099259x – Bottom Positioner
4 – 153000xx – Aluminium Double Bottom Track
5 – 156220xx – Aluminium Bottom Track Facia
6 – 153050xx – Aluminium Double Top Track
7 – 153102xx – Aluminium Rail, Narrow
8 – 153152xx – Aluminium Rail, Wide
9 – 153205xx – Niagara Aluminium Stile
10 – 153206xx – Windsor Aluminium Stile
11 – 153210xx – Athabasca Aluminium Stile
12 – 153203xx – Quebec Aluminium Stile
13 – 153204xx – Victoria Aluminium Stile
14 – 153204xx – Calgary Aluminium Stile
15 – 153207xx – Yukon Aluminium Stile
16 – 153207xx – Edmonton Aluminium Stile
17 – 153209xx – Hudson Aluminium Stile
18 – 153250xx – Aluminium Single Bottom Track
19 – 153300xx – Aluminium Single Top Track
20 – 153352xx – Aluminium Connector Rail
21 – 153351xx – Narrow Aluminium Connector Rail
22 – 153353xx – 4 mm Aluminium Connector Rail
23 – 156310xx – 18 mm Decorative Strip
23 – 156300xx – Aluminium Decorative Profile
24 – 16000080 – Plug
25 – 160000xx – Gasket
26 – 810000xx – Buffer Strip
27 – 811000xx – Dust Stop Brush Strip
28 – 8800030x – Lock
29 – 16000062A – 4.8 X 25 Self-tapping Screw

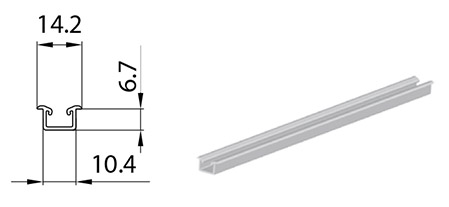

30 – 153255xx – Aluminium Recessed Single Bottom Track
31 – 153260xx – Alu. Recessed Wide Single Bottom Track
32 – 156250SU – Recessed Single Bottom Track Mounting Profile
33 – 16000090 – Self-adhesive Cap
16000085 – INDECO Self-adhesive Cap
34 – 880000xx – Safety Backing
35 – 099270 – Top Track Stopper
36 – 16000094 – Single Top Track End Cap
37 – 16000093 – Double Top Track End Cap
38 – 099275 – Bottom Track Stopper
39 – 16000095 – Double Bottom Track End Cap
40 – 16000096x – Single Bottom Track End Cap, left/right
41 – 16000005 – Double-sided Self-adhesive Tape
42 – 099276 – Positioner
43 – 099249 – Buffer Strip Clip
44 – 099249A – Buffer Strip Clip
45 – 099245 – Aluminium System Universal Soft Closer Accessories
46 – 099245 – Universal Soft Closer

1. Bottom Roller for Aluminium System

051711Body made from high-impact structural plastic. The moving part is adjustable within the 0-15 mm range by means of an adjusting bolt and is provided with a spring anti-jump feature. The roller has a wheel of a high-strength plastic with an embedded sealed, lubricated steel ball bearing. The set comes with the adjusting bolt and washer. Resistance: up to 60 kg/2rollers, up to 50,000 open/close cycles.


2. Symmetrical Top Guide with Bearing for Quebec Victoria Calgary Yukon Edmonton Hudson aluminum profiles.

052471xxThe guide is of durable steel construction. Two permanently riveted wheels of high-strength plastic and vibration damping rubber ensure extremely quiet operation.
Available in two versions:
– with the INDECO logo – 052471LL,
– without the INDECO logo – 052471LO.


3. Bottom Positioner. A component that holds in position alum-inium system doors up to 12 kg

099259xA component that holds in position alum-inium system doors of 12 kg to 25 kg.

A component that holds in position alum-inium system doors of 25 kg to 50 kg.


4. Aluminium Double Bottom Track. Length: 5 m

153000xxTrack made from aluminium alloy, anodized or finished in simulated wood paint.


5. Double Bottom Track Fascia. Length: 5 m

156220xxCan be used as decorative profile with the Hudson profile.


6. Aluminium Double Top Track. Length: 5 m

153050xxMade from aluminium alloy, anodized or finished in simulated wood paint.


7. Narrow Aluminium Rail, 10 mm. Length: 5 m

153102xxA rail for 10 mm board , 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint.


8. Wide Aluminium Rail, 10 mm. Length: 5 m

153152xxA general-purpose rail for top roller aluminium system.


153205xx9. Niagara Aluminium Stile, 10 mm. Length: 5.5 m

A stile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint.


153206xx-300x20210. Windsor Aluminium Stile, 10 mm. Length: 5.5 mm

A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized finished in simulated wood paint.


153203x11. Quebec Aluminium Stile, 10 mm. Length: 5.5 m

A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from anodized aluminium alloy.


12 and 13. Calgary Victoria Aluminium Stile, 10 mm

153204xxLength: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint. Profile length: 5000 mm.


14 and 15. Yukon Edmonton Aluminium Stile, 10mm

153207xxLength: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, ano-dized or finished in simulated wood paint.

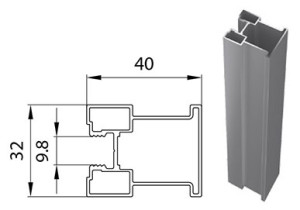

153209xx16. Hudson Aluminium Stile, 10 mm

Length: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from anodized aluminium alloy.


17. Aluminium Single Bottom Track. Length: 5 m

153250xxA track made from anodized aluminium alloy. The width of the single track enables it to be easily connected with other tracks (butt joints), providing correct distances between door leaves.


18. Aluminium Single Top Track. Length: 5 m

153300xxAluminium Single Top Track. Length: 5 m. A track made from anodized aluminium alloy or finished in simulated wood film. The track features a “shadow line” which masks ceiling irregularities. Profile length: 5000 mm.


19. Aluminium Connector Rail, 10 mm. Length: 5 m

153352xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy.


20. Aluminium Connector Rail, 10 mm. Length: 5 m

153351xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy. Custom-designed shape for easy bending of the profile.


21. Aluminium Connector Rail, 4 mm. Length: 2.1 m

153353xxA profile for 4 mm glass or mirror panels or for board provi-ded with an appropriate groove.


22. Decorative Strip, 18 mm

156310xxLength: 2 m.
An 18×2 mm universal decorative profile fixed to door panels.


23. Aluminium Decorative Strip. Length: 2 m

156300xxA 25 x 2 mm universal decorative profile fixed to door panels.


24. Transparent Plug for Aluminium Profiles

16000080A plug covering installation holes.


25. Gasket

160000xxAluminium System Gasket, 10/4 mm.
An elastic component for secure connection of mirror with a profile, fully concealed in the profile.

Versions: x:
K – Fig. 1 (milk).
V – Fig. 2.
C – Fig. 2 (transparent).
Packaging: 100 m/roll.
Weight: K – ~6.60 kg/roll,
V – ~4.90 kg/roll,
C – ~5.18 kg/roll.
Availability: continuous.

Aluminium System Gasket, 10/8 mm.
Packaging: 100 m/roll
Weight: ~3.35 kg/roll
Availability: continuous.

Aluminium System Gasket, 10/6 mm.
Packaging: 100 m/roll.
Weight: ~9.87 kg/roll.
Availability: continuous.


26. Self-adhesive Buffer Strip, 4.8×5 or 4.8 x 4

810000xx-2A strip designed to dampen door impact against the wall and eliminate minor wall irregularities.
Hair length: 5 mm or 4 mm.


27. Self-adhesive Dust-stop Brush, 6.7 x 12

811000xx-4A brush designed to seal the space between door leaves and to stop dust. Hair length: 12 mm.

Self-adhesive Dust-stop Brush, 6.7 x 8.
A brush designed to seal the space between door leaves and to stop dust. Hair length: 8 mm.


28. Sliding Door Lock

880003xxA universal lock for steel and aluminium door systems.


29. 4.8 x 25 Allen-head Self-tapping Screw

16000062AA basic fastener for the aluminium system.


30. Aluminium Recessed Single Bottom Track

153255xxLength: 5 m. A track made from anodized aluminium alloy.


31. Aluminium Wide Recessed Single Track. Length: 5 m

153260xxA track made from anodized aluminium alloy.


32. Mounting Profile for Recessed Single Bottom Profile, for use with 153255xx.

156250SULength: 5 m. Colours: raw aluminium.


33. Self-adhesive Cap.

16000090Self-adhesive Cap.
Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.

Self-adhesive Cap. INDECO.
Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.


34. Self-adhesive Safety Backing.

880000xx-2Self-adhesive Safety Backing, 100 mm x 250 m.
Transparent film. Packaging: 100 m2/roll, 10 cm wide.
Weight: ~2.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 200 mm x 250 m.
Black film. Packaging: 50 m2/roll, 20 cm wide.
Weight: ~5.00 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 300 mm x 250 m.
Transparent film. Packaging: 75 m2/roll, 30 cm wide.
Weight: ~7.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 400 mm x 250 m.
Transparent film. Packaging: 100 m2/roll, 40 cm wide.
Weight: ~10.50 kg/roll. Availability: continuous.


35. Aluminium Top Track Stopper

099270Packaging: 1pce/pack.
Weight: ~0.04 kg/pack.
Availability: continuous.


36. End Cap for Aluminium Single Top Track

16000094Packaging: 1 pce/pack.
Weight: ~0.004 kg/pack.
Availability: continuous.


37. End Cap for Aluminium Double Top Track

16000093Packaging: 1 pce/pack.
Weight: ~0.01 kg/pack.
Availability: continuous.


38. Aluminium Bottom Track Stopper

099275Packaging: 1 pce/pack.
Weight: ~0.001 kg/pack.
Availability: continuous.
Comes complete with 1.5 mm Allen key.


39. End Cap for Aluminium Double Bottom Track

16000095Packaging: 20 pcs/pack.
Weight: ~0.08 kg/pack.
Availability: continuous.
Comes complete with 1.5 mm Allen key.


40. End Cap for Aluminium Double Bottom Track

16000096xx: L – left, R – right.
Packaging: 100 pcs/pack.
Weight: ~0.06 kg/pack.
Availability: continuous.
Comes complete with a 1.5 mm Allen key.


41. Double-sided Self-adhesive Tape, 0.8 mm

16000005All-purpose assembly tape.
Packaging: 25 m/pack.
Weight: ~0.17 kg/pack.
Availability: continuous.


42. Positioner for Aluminium Bottom Track

099276Comes complete with a 1.5 mm Allen key.
Packaging: 10 pcs/pack.
Weight: ~0.003 kg/pack.
Availability: continuous.


43. Buffer Strip Clip

099249-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 100 pcs/pack.
Weight: ~0.08 kg/pack.
Availability: continuous.


44. Buffer Strip Clip

099249A-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 200 pcs/pack.
Weight: ~0.16 kg/pack.
Availability: continuous.


45. Aluminium System Soft Closer Accessories

099245-2The accessories include:
– Trigger
– Fixing screws
– Adapters
Application: A100, A200, Ontario. Availability: continuous.


09923x46. Universal Soft Closer.

It ensures that the door leaf closes softly to its end position. The soft closer features an air damper, which gu-arantees durability and performance stability throughout its useful life.
The design of the soft closer body allows it to be used as a left-hand or right-hand closer. The installation of the soft closer on the steel system-based door leaf is possible with the use of the steel system door closer accessories 099245. The soft closer is available in two versions:
099233 – soft closer for doors of up to 25kg in weight.
099234 – soft closer for doors of 25 to 50kg in weight. Application: S100, A100, A200.
Availability: continuous.

frameless-aluminium
1 – 173152AS – Ontario Wide Rail
2 – 173102AS – Ontario Narrow Rail
3 – 173204AS – Ontario Stile
4 – 052300 – Top Guide Bearing for Ontario and Athabasca Profiles
5 – 173300 – Aluminium Narrow Top Track
6 – 89500005 – Frameless Door Holder
7 – 173220 – Narrow Double Bottom Track Fascia
8 – 173000 – Aluminium Narrow Double Bottom Track
9 – 810000xx – Buffer Strip
10 – 811000xx – Dust Stop Brush Strip
11 – 099270 – Top Track Stopper
12 – 099245 – Aluminium System Universal Soft Closer Accessories
13 – 09923x – Universal Soft Closer
14 – 099249A – Buffer Strip Clip
15 – 16000062A – 4.8 X 25 Self-tapping Screw
16 – 16000090 – Self-adhesive Cap
17 – 8800030x – Lock
18 – 16000080 – PLug
19 – 051711 – Bottom Roller (complete)
20 – 099276 – Positioner
21 – 099275 – Bottom Track Stopper
22 – 099259x – Bottom Positioner
23 – 16000096x – Single Bottom Track End Cap, left/right
24 – 153250xx – Aluminium Single Bottom Track
25 – 153260xx – Alu. Recessed Wide Single Bottom Track
26 – 153255xx – Aluminium Recessed Single Bottom Track
27 – 156250SU – Recessed Single Bottom Track Mounting Profile

1. Ontario Wide Rail, Anodized

173152ASBelongs to the group of profiles developed for frameless doors.


2. Ontario Narrow Rail, Anodized

173102AS-2The Ontario aluminium narrow rail belongs to the group of profiles deve-loped for frameless doors.


3. Ontario Alumimium Stile, Anodized

173204ASBelongs to the group of profiles developed for frameless doors.


4. Top Guide with Bearing for Ontario and Athabasca Profiles

052300


5. Aluminium Narrow Top Track

173300


6. Frameless Door Holder

89500005


7. Aluminium Narrow Double Bottom Track Fascia

173220


8. Aluminium Narrow Double Bottom Track

173000


9. Self-adhesive Buffer Strip

810000xxA strip designed to dampen door impact against the wall and eliminate minor wall irregularities.
Hair length: 5 mm or 4 mm.


10. Self-adhesive Dust-stop Brush 6.7 x 8

811000xx-2Self-adhesive Dust-stop Brush, 6.7 x 8.
A brush designed to seal the space between door leaves and to stop dust. Hair length: 8 mm.


11. Aluminium Top Track Stopper

099270


12. Universal Soft Closer Accessories

099245-2


13. Universal Soft Closer

09923xIt ensures that the door leaf closes softly to its end position. The soft closer features an air damper, which gu-arantees durability and performance stability throughout its useful life.
The design of the soft closer body allows it to be used as a left-hand or right-hand closer. The installation of the soft closer on the steel system-based door leaf is possible with the use of the steel system door closer accessories 099245. The soft closer is available in two versions:
099233 – soft closer for doors of up to 25kg in weight.
099234 – soft closer for doors of 25 to 50kg in weight. Application: S100, A100, A200.
Availability: continuous.


14. Buffer Strip Clip

099249-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 100 pcs/pack.
Weight: ~0.08 kg/pack.
Availability: continuous.


15. 4.8 x 25 Allen-head Self-tapping Screw

16000062AA basic fastener for the aluminium system.


16. Self-adhesive Cap

16000090-2


17. Sliding Door Lock

880003xxA universal lock for steel and aluminium door systems.


18. Transparent Plug for Aluminium Profiles

16000080A plug covering installation holes.


19. Bottom Roller for Aluminium System

051711Body made from high-impact structural plastic. The moving part is adjustable within the 0-15 mm range by means of an adjusting bolt and is provided with a spring anti-jump feature. The roller has a wheel of a high-strength plastic with an embedded sealed, lubricated steel ball bearing. The set comes with the adjusting bolt and washer. Resistance: up to 60 kg/2rollers, up to 50,000 open/close cycles.


20. Positioner for Aluminium Bottom Track

099276


21. Aluminium Bottom Track Stopper

099275


22. Bottom Positioner

099259x


23. Bottom Track End Cap

16000096x


24. Aluminium Single Bottom Track

153300xx


25. Aluminium Wide Recessed Single Track

153260xx


26. Aluminium Recessed Single Bottom Track

153255xx


27. Recessed Single Bottom Track Mounting Profile

156250SU


narrow-aluminium-frame-doors
1 – 051711 – Wózek dolny (komplet)
2 – 052300 – Top Guide for Ontario and Athabasca Profiles
3 – 099259x – Bottom Positioner
4 – 173000 – Aluminium Narrow Double Bottom Track
5 – 173230 – Aluminium Narrow Bottom Track Facia
6 – 173050 – Aluminium Narrow Double Top Track
7 – 153102xx – Aluminium Rail, Narrow
8 – 153152xx – Aluminium Rail, Wide
9 – 153210xx – Aluminium Stile
10 – 153250xx – Aluminium Single Bottom Track
11 – 153352xx – Aluminium Connector Rail Athabasca
12 – 153351xx – Aluminium Narrow Connector Rail
13 – 153353xx – 4 mm Aluminium Connector Rail
14 – 156310xx – 18 mm Decorative Strip
15 – 156300xx – Aluminium Decorative Profile
16 – 16000080 – Plug
17 – 160000xx – Gasket
18 – 810000xx – Buffer Strip
19 – 811000xx – Dust Stop Brush Strip
20 – 8800030x – Lock
21 – 16000062A – 4.8 x 25 Self-tapping Screw
22 – 153255xx – Aluminium Recessed Single Bottom Track
23 – 153260xx – Alu. Recessed Wide Single Bottom Track
24 – 156250SU – Recessed Single Bottom Track Mounting Profile
25 – 16000090 – Self-adhesive Cap
26 – 16000085 – INDECO Self-adhesive Cap
27 – 880000xx – Safety Backing
28 – 099270 – Top Track Stopper
29 – 099275 – Bottom Track Stopper
30 – 16000096x – Single Bottom Track End Cap, left/right
31 – 16000005 – Double-sided Self-adhesive Tape
32 – 099276 – Positioner
33 – 099249 – Buffer Strip Clip
34 – 099249A – Buffer Strip Clip
35 – 099245 – Aluminium System Universal Soft Closer Accessories
36 – 09923x – Universal Soft Closer

1. Bottom Roller for Aluminium System

051711Body made from high-impact structural plastic. The moving part is adjustable within the 0-15 mm range by means of an adjusting bolt and is provided with a spring anti-jump feature. The roller has a wheel of a high-strength plastic with an embedded sealed, lubricated steel ball bearing. The set comes with the adjusting bolt and washer. Resistance: up to 60 kg/2rollers, up to 50,000 open/close cycles.


2. Top Guide with Bearing for Ontario and Athabasca Profiles

052300


3. Bottom Positioner. A component that holds in position alum-inium system doors up to 12 kg

099259xA component that holds in position alum-inium system doors of 12 kg to 25 kg.

A component that holds in position alum-inium system doors of 25 kg to 50 kg.


4. Aluminium Narrow Double Bottom Track

173000


5. Aluminium Narrow Double Bottom Track Fascia

173220


6. Aluminium Narrow Top Track

173300


7. Narrow Aluminium Rail, 10 mm. Length: 5 m

153102xxA rail for 10 mm board , 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint.


8. Wide Aluminium Rail, 10 mm. Length: 5 m

153152xxA general-purpose rail for top roller aluminium system.


9. Aluminium Stile, 10 mm.

153210xxAthabasca or, with an appropriate gasket, for 8mm, 6mm or 4mm pa-nels. The profile is made from anodized aluminium alloy. A door leaf set in Athabasca stiles features a very narrow frame of 18mm in width.


10. Aluminium Single Bottom Track. Length: 5 m

153250xxA track made from anodized aluminium alloy. The width of the single track enables it to be easily connected with other tracks (butt joints), providing correct distances between door leaves.


11. Aluminium Connector Rail, 10 mm. Length: 5 m.

153352xx-2A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy.


12. Aluminium Connector Rail, 10 mm. Length: 5 m

153351xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy. Custom-designed shape for easy bending of the profile.


13. Aluminium Connector Rail, 4 mm. Length: 2.1 m

153353xxA profile for 4 mm glass or mirror panels or for board provi-ded with an appropriate groove.


14. Decorative Strip, 18 mm

156310xxLength: 2 m.
An 18×2 mm universal decorative profile fixed to door panels.


15. Aluminium Decorative Strip. Length: 2 m

156300xxA 25 x 2 mm universal decorative profile fixed to door panels.


16. Transparent Plug for Aluminium Profiles

16000080A plug covering installation holes.


17. Gasket

160000xxAluminium System Gasket, 10/4 mm.
An elastic component for secure connection of mirror with a profile, fully concealed in the profile.

Versions: x:
K – Fig. 1 (milk).
V – Fig. 2.
C – Fig. 2 (transparent).
Packaging: 100 m/roll.
Weight: K – ~6.60 kg/roll,
V – ~4.90 kg/roll,
C – ~5.18 kg/roll.
Availability: continuous.

Aluminium System Gasket, 10/8 mm.
Packaging: 100 m/roll
Weight: ~3.35 kg/roll
Availability: continuous.

Aluminium System Gasket, 10/6 mm.
Packaging: 100 m/roll.
Weight: ~9.87 kg/roll.
Availability: continuous.


18. Self-adhesive Buffer Strip, 4.8×5 or 4.8 x 4

810000xx-2A strip designed to dampen door impact against the wall and eliminate minor wall irregularities.
Hair length: 5 mm or 4 mm.


19. Self-adhesive Dust-stop Brush, 6.7 x 12

811000xx-4A brush designed to seal the space between door leaves and to stop dust. Hair length: 12 mm.

Self-adhesive Dust-stop Brush, 6.7 x 8.
A brush designed to seal the space between door leaves and to stop dust. Hair length: 8 mm.


20. Sliding Door Lock

880003xxA universal lock for steel and aluminium door systems.


21. 4.8 x 25 Allen-head Self-tapping Screw

16000062AA basic fastener for the aluminium system.


22. Aluminium Recessed Single Bottom Track.

153255xx-2Length: 5 m. A track made from anodized aluminium alloy.


23. Aluminium Wide Recessed Single Track. Length: 5 m

153260xxA track made from anodized aluminium alloy.


24. Mounting Profile for Recessed Single Bottom Profile, for use with 153255xx.

156250SULength: 5 m. Colours: raw aluminium.


25. Self-adhesive Cap.

16000090

Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.


26. Self-adhesive Cap. INDECO.

16000090

Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.


27. Self-adhesive Safety Backing.

880000xx-2Self-adhesive Safety Backing, 100 mm x 250 m.
Transparent film. Packaging: 100 m2/roll, 10 cm wide.
Weight: ~2.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 200 mm x 250 m.
Black film. Packaging: 50 m2/roll, 20 cm wide.
Weight: ~5.00 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 300 mm x 250 m.
Transparent film. Packaging: 75 m2/roll, 30 cm wide.
Weight: ~7.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 400 mm x 250 m.
Transparent film. Packaging: 100 m2/roll, 40 cm wide.
Weight: ~10.50 kg/roll. Availability: continuous.


28. Aluminium Top Track Stopper

099270Packaging: 1pce/pack.
Weight: ~0.04 kg/pack.
Availability: continuous.


29. Aluminium Bottom Track Stopper

099275Packaging: 1 pce/pack.
Weight: ~0.001 kg/pack.
Availability: continuous.
Comes complete with 1.5 mm Allen key.


30. End Cap for Aluminium Double Bottom Track

16000096xx: L – left, R – right.
Packaging: 100 pcs/pack.
Weight: ~0.06 kg/pack.
Availability: continuous.
Comes complete with a 1.5 mm Allen key.


31. Double-sided Self-adhesive Tape, 0.8 mm

16000005All-purpose assembly tape.
Packaging: 25 m/pack.
Weight: ~0.17 kg/pack.
Availability: continuous.


32. Positioner for Aluminium Bottom Track

099276Comes complete with a 1.5 mm Allen key.
Packaging: 10 pcs/pack.
Weight: ~0.003 kg/pack.
Availability: continuous.


33. Buffer Strip Clip

099249-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 100 pcs/pack.
Weight: ~0.08 kg/pack.
Availability: continuous.


34. Buffer Strip Clip

099249A-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 200 pcs/pack.
Weight: ~0.16 kg/pack.
Availability: continuous.


35. Aluminium System Soft Closer Accessories

099245-2The accessories include:
– Trigger
– Fixing screws
– Adapters
Application: A100, A200, Ontario. Availability: continuous.


09923x36. Universal Soft Closer.

It ensures that the door leaf closes softly to its end position. The soft closer features an air damper, which gu-arantees durability and performance stability throughout its useful life.
The design of the soft closer body allows it to be used as a left-hand or right-hand closer. The installation of the soft closer on the steel system-based door leaf is possible with the use of the steel system door closer accessories 099245. The soft closer is available in two versions:
099233 – soft closer for doors of up to 25kg in weight.
099234 – soft closer for doors of 25 to 50kg in weight. Application: S100, A100, A200.
Availability: continuous.

top_hung_aluminium
1 – 153152xx – Aluminium Bottom Rail
2 – 153205xx – Niagara Aluminium Stile
3 – 153206xx – Windsor Aluminium Stile
4 – 153210AS – Athabasca Aluminium Stile
5 – 153203xx – Quebec Aluminium Stile
6 – 153204xx – Calgary Aluminium Stile
7 – 153204xx – Aluminium Rail, Narrow
8 – 153207xx – Yukon Aluminium Stile
9 – 153207xx – Edmonton Aluminium Stile
10 – 153209xx – Hudson Aluminium Stile
11 – 153352xx – Connector Rail
12 – 156200AS – Suspended Top Track
13 – 15630000 – Aluminium Decorative Strip
14 – 153351xx – Narrow Aluminium Connector Rail
15 – 153353xx – 4mm Aluminium Connector Rail
16 – 156310xx – 18mm Decorative Strip
17 – 16000080 – Plug
18 – 160000xx – Gasket
19 – 89500045ZL – A300/A400/A500 Hardware Set
19-1 – Roller
19-2 – Roller Mounting Block
19-3 – Positioner
19-4 – PAD Guide
19-5 – Self-tapping Screw
20 – 16000062A – 4.8 x 25 Self-tapping Screw
21 – 810000xx – Buffer Strip
22 – 811000xx – Dust-stop Brush
23 – 156210xx – Top Suspended Track Fascia
24 – 16000101 – Top Suspended Track End Cap
25 – 16000090 – Self-adhesive Cap
– 16000085 – INDECO Self-adhesive Cap
26 – 8800030x – Lock
27 – 880000xx – Safety Backing
28 – 16000005 – Double-sided Self-adhesive Tape
29 – 099249 – Buffer Strip Clip
30 – 099249A – Buffer Strip Clip
31 – 156230AS – Suspended Track Holder Fascia
32 – 89500004 – Suspended Track Holder

1. Wide Aluminium Rail, 10 mm. Length: 5 m

153152xxA general-purpose rail for top roller aluminium system.


153205xx2. Niagara Aluminium Stile, 10 mm. Length: 5.5 m

A stile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint.


153206xx-300x2023. Windsor Aluminium Stile, 10 mm. Length: 5.5 mm

A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized finished in simulated wood paint.


4. Aluminium Stile, 10 mm.

153210xxAthabasca or, with an appropriate gasket, for 8mm, 6mm or 4mm pa-nels. The profile is made from anodized aluminium alloy. A door leaf set in Athabasca stiles features a very narrow frame of 18mm in width.


153203x5. Quebec Aluminium Stile, 10 mm. Length: 5.5 m

A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from anodized aluminium alloy.


6/7. Calgary Victoria Aluminium Stile, 10 mm

153204xxLength: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint. Profile length: 5000 mm.


8/9. Yukon Edmonton Aluminium Stile, 10mm

153207xxLength: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, ano-dized or finished in simulated wood paint.


153209xx10. Hudson Aluminium Stile, 10 mm

Length: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from anodized aluminium alloy.


11. Aluminium Connector Rail, 10 mm. Length: 5 m

153352xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy.


12. Aluminium Suspended Top Track. Length: 5 m.

156200A universal profile for aluminium top roller systems.


13. Aluminium Decorative Strip. Length: 2 m

156300xxA 25 x 2 mm universal decorative profile fixed to door panels.


14. Aluminium Connector Rail, 10 mm. Length: 5 m

153351xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy. Custom-designed shape for easy bending of the profile.


15. Aluminium Connector Rail, 4 mm. Length: 2.1 m

153353xxA profile for 4 mm glass or mirror panels or for board provi-ded with an appropriate groove.


16. Decorative Strip, 18 mm

156310xxLength: 2 m.
An 18×2 mm universal decorative profile fixed to door panels.


17. Transparent Plug for Aluminium Profiles

16000080A plug covering installation holes.


18. Gasket

160000xxAluminium System Gasket, 10/4 mm.
An elastic component for secure connection of mirror with a profile, fully concealed in the profile.


19. A300/A400/A500 Roller Set

89500045ZLA hardware set for top-roller aluminium systems. Twin-bearing rollers.


20. 4.8 x 25 Allen-head Self-tapping Screw

16000062AA basic fastener for the aluminium system.


21. Self-adhesive Buffer Strip, 4.8×5 or 4.8 x 4

810000xx-2A strip designed to dampen door impact against the wall and eliminate minor wall irregularities.
Hair length: 5 mm or 4 mm.


22. Self-adhesive Dust-stop Brush, 6.7 x 12

811000xx-4A brush designed to seal the space between door leaves and to stop dust. Hair length: 12 mm.

Self-adhesive Dust-stop Brush, 6.7 x 8.
A brush designed to seal the space between door leaves and to stop dust. Hair length: 8 mm.


23. Fascia for Aluminium Suspended Top Track

156210xx


24. End Cap for Suspended Track

16000101


25. Self-adhesive Cap.

16000090Self-adhesive Cap.
Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.

Self-adhesive Cap. INDECO.
Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.


26. Sliding Door Lock

880003xxA universal lock for steel and aluminium door systems.


27. Self-adhesive Safety Backing.

880000xx-2


28. Double-sided Self-adhesive Tape, 0.8 mm

16000005All-purpose assembly tape.
Packaging: 25 m/pack.
Weight: ~0.17 kg/pack.
Availability: continuous.


29. Buffer Strip Clip

099249-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 100 pcs/pack.
Weight: ~0.08 kg/pack.
Availability: continuous.


30. Buffer Strip Clip

099249A-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 200 pcs/pack.
Weight: ~0.16 kg/pack.
Availability: continuous.


31. Suspended Top Track Holder Fascia. Length: 5 m.

156230asA fascia made of anodized aluminium alloy.


32. Suspended Track Wall Mount Holder

895000094

top_hung_aluminium
1 – 153152xx – Aluminium Rail, Wide
2 – 153102xx – Aluminium Rail, Narrow
3 – 153205xx – Niagara Aluminium Stile
4 – 153206xx – Windsor Aluminium Stile
5 – 153203xx – Quebec Aluminium Stile
6 – 153204xx – Victoria Aluminium Stile
7 – 153204xx – Calgary Aluminium Rail
8 – 153207xx – Yukon Aluminium Stile
9 – 153207xx – Edmonton Aluminium Stile
10 – 153209xx – Hudson Aluminium Stile
11 – 153352xx – Aluminium Connector Rail
12 – 153351xx – Narrow Alu. Connector Rail
13 – 153353xx – 4 mm Alu. Connector Rail
14 – 156310xx – 18 mm Decorative Strip
15 – 15630000 – Aluminium Decorative Profile
16 – 16000080 – Cap
17 – 160000xx – Gasket
18 – 810000xx – PBuffer Strip
19 – 811000xx – Dust-stop Brush
20 – 89500040 – A600 Hardware Set
20-1 – Bottom Pivot Socket
20-2 – Top Pivot Socket
20-3 – Top Pivot Pin Block
20-4 – Bottom Pivot Pin Block
20-5 – 4.8 x 25 Self-tapping Screw
21 – 16000062A – 4.8 x 25 Self-tapping Screw
22 – 88000310 – Magnetic Latch with Keeper
23 – 16000090 – Self-adhesive Cap
16000085 – INDECO Self-adhesive Cap
24 – 880000xx – Safety Backing
25 – 16000005 – Double-sided Self-adhesive Tape
26 – 099249 – Buffer Strip Clip
27 – 099249A – Buffer Strip Clip
28 – 89500043 – A600 Hardware Set
28-1 – Pivotwith Socket
28-2 – Pivot Base
28-3 – Pivot with Socket

1. Wide Aluminium Rail, 10 mm. Length: 5 m

153152xxA general-purpose rail for top roller aluminium system.


2. Narrow Aluminium Rail, 10 mm. Length: 5 m

153102xxA rail for 10 mm board , 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint.


153205xx3. Niagara Aluminium Stile, 10 mm. Length: 5.5 m

A stile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint.


153206xx-300x2024. Windsor Aluminium Stile, 10 mm. Length: 5.5 mm

A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized finished in simulated wood paint.


153203x5. Quebec Aluminium Stile, 10 mm. Length: 5.5 m

A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from anodized aluminium alloy.


6/7. Calgary Victoria Aluminium Stile, 10 mm

153204xxLength: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, anodized or finished in simulated wood paint. Profile length: 5000 mm.


8/9. Yukon Edmonton Aluminium Stile, 10mm

153207xxLength: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from aluminium alloy, ano-dized or finished in simulated wood paint.


153209xx10. Hudson Aluminium Stile, 10 mm

Length: 5.5 m. A profile for 10 mm board, 8 or 6 mm glazing or 4 mm mirror panels. Made from anodized aluminium alloy.


11. Aluminium Connector Rail, 10 mm. Length: 5 m

153352xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy.


12. Aluminium Connector Rail, 10 mm. Length: 5 m

153351xxA profile for 10 mm board, 8 or 6 mm glazing or 4 mm mir-ror panels. Made from anodized aluminium alloy. Custom-designed shape for easy bending of the profile.


13. Aluminium Connector Rail, 4 mm. Length: 2.1 m

153353xxA profile for 4 mm glass or mirror panels or for board provi-ded with an appropriate groove.


14. Decorative Strip, 18 mm

156310xxLength: 2 m.
An 18×2 mm universal decorative profile fixed to door panels.


15. Aluminium Decorative Strip. Length: 2 m

156300xxA 25 x 2 mm universal decorative profile fixed to door panels.


16. Transparent Plug for Aluminium Profiles

16000080A plug covering installation holes.


17. Gasket

160000xxAluminium System Gasket, 10/4 mm.
An elastic component for secure connection of mirror with a profile, fully concealed in the profile.

Versions: x:
K – Fig. 1 (milk).
V – Fig. 2.
C – Fig. 2 (transparent).
Packaging: 100 m/roll.
Weight: K – ~6.60 kg/roll,
V – ~4.90 kg/roll,
C – ~5.18 kg/roll.
Availability: continuous.

Aluminium System Gasket, 10/8 mm.
Packaging: 100 m/roll
Weight: ~3.35 kg/roll
Availability: continuous.

Aluminium System Gasket, 10/6 mm.
Packaging: 100 m/roll.
Weight: ~9.87 kg/roll.
Availability: continuous.


18. Self-adhesive Buffer Strip, 4.8×5 or 4.8 x 4

810000xx-2A strip designed to dampen door impact against the wall and eliminate minor wall irregularities.
Hair length: 5 mm or 4 mm.


19. Self-adhesive Dust-stop Brush, 6.7 x 12

811000xx-4A brush designed to seal the space between door leaves and to stop dust. Hair length: 12 mm.

Self-adhesive Dust-stop Brush, 6.7 x 8.
A brush designed to seal the space between door leaves and to stop dust. Hair length: 8 mm.


20. A600 Hardware Set for aluminium systems with A600 hinged doors.
For wide rails.

89500040


21. 4.8 x 25 Allen-head Self-tapping Screw

16000062AA basic fastener for the aluminium system.


8800031022. Magnetic Latch and Keeper

Automatic magnetic latch for pivoted doors with a self -adhesive keeper
Packaging: 1 pce/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.


23. Self-adhesive Cap.

16000090Self-adhesive Cap.
Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.

Self-adhesive Cap. INDECO.
Packaging: 48 pcs/pack.
Weight: ~0.02 kg/pack.
Availability: continuous.


24. Self-adhesive Safety Backing.

880000xx-2Self-adhesive Safety Backing, 100 mm x 250 m.
Transparent film. Packaging: 100 m2/roll, 10 cm wide.
Weight: ~2.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 200 mm x 250 m.
Black film. Packaging: 50 m2/roll, 20 cm wide.
Weight: ~5.00 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 300 mm x 250 m.
Transparent film. Packaging: 75 m2/roll, 30 cm wide.
Weight: ~7.50 kg/roll. Availability: continuous.

Self-adhesive Safety Backing, 400 mm x 250 m.
Transparent film. Packaging: 100 m2/roll, 40 cm wide.
Weight: ~10.50 kg/roll. Availability: continuous.


25. Double-sided Self-adhesive Tape, 0.8 mm

16000005All-purpose assembly tape.
Packaging: 25 m/pack.
Weight: ~0.17 kg/pack.
Availability: continuous.


26. Buffer Strip Clip

099249-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 100 pcs/pack.
Weight: ~0.08 kg/pack.
Availability: continuous.


27. Buffer Strip Clip

099249A-2A clip preventing the buffer strip from coming unstuck.
Color: silver.
Packaging: 200 pcs/pack.
Weight: ~0.16 kg/pack.
Availability: continuous.


28. Buffer Strip Clip

89500043A600 Hardware Set for aluminium systems with A600 hinged doors. For narrow rails.


For further information, please call 0208 123 8686 or email info@slidingwardrobesunlimited.com
